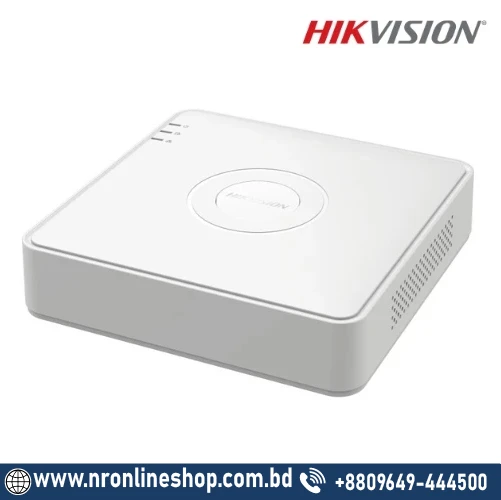

Hikvision DS-7104HGHI-M1/T 4-ch 1080p Lite Mini 1U H.265 DVR

1. Support all channels motion detection technology
2. H.265 Pro+/H.265 Pro/H.265 video compression
3. HDTVI/CVI/AHD/IP/CVBS video inputs
4. Audio over coaxial cable
5. Support all channels HDTVI two-way audio technology
6. Up to 5-ch IP camera inputs

Specification:

Motion Detection 2.0

1. Human/Vehicle Analysis
2. Deep learning based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
3. Quick search by object or event type is supported;

Video and Audio

1. IP Video Input
2. 1-ch (up to 5-ch)
3. Up to 2MP resolution
4. Support H.265+/H.265/H.264+/H.264 IP cameras
5. Analog Video Input
6. 4-ch
7. BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
8. HDTVI Input1080p25, 1080p30, 720p25, 720p30
9. AHD Input1080p25, 1080p30, 720p25, 720p30
10. HDCVI Input1080p25, 1080p30, 720p25, 720p30
11. CVBS InputSupport
12. HDMI Output
13. 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
14.
15. VGA Output
16. 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
17.
18. Video Output ModeHDMI/VGA simultaneous output
19. Audio Input
20. 1-ch RCA (2.0 Vp-p, 1 KΩ)
21. 4-ch via coaxial cable
22. Audio Output1-ch, RCA (Linear, 1 KΩ)
23. Two-Way AudioReuse the first audio input
24. Synchronous playback4-ch

Recording

1. Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
2. Encoding Resolution
3. For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
4. For 720p stream access: 720p/WD1/4CIF/VGA/CIF
5. For SD stream access: WD1/4CIF/VGA/CIF
6. Frame Rate
7. Main stream:
8. For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N)
9. For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N)
10. For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
11. Sub-stream:
12. 4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)
13. Video Bitrate32 Kbps to 4 Mbps
14. Stream TypeVideo, Video & Audio
15. Audio CompressionG.711u
16. Audio Bitrate64 Kbps

Network

1. Total Bandwidth64 Mbps
2. Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS
3. Remote Connection32
4. Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface
5. Auxiliary Interface
6. SATA1 SATA interface
7. CapacityUp to 4 TB capacity for each disk
8. USB InterfaceRear panel: 2 × USB 2.0
9. Alarm In/OutN/A

General

1. Power Supply12 VDC, 1.5 A
2. Consumption≤ 10 W (without HDD)
3. Working Temperature-10 °C to 55 °C (14 °F to +131 °F)
4. Working Humidity10% to 90%
5. Dimension (W × D × H)200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch)
6. Weight≤ 0.8 kg (without HDD, 1.8 lb.)
