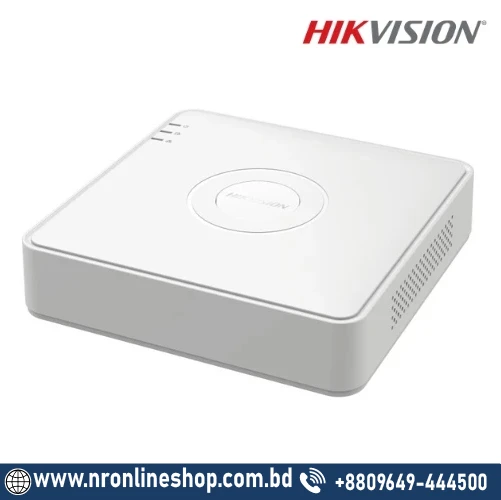

Hikvision DS-7108HGHI-M1/T 08 Channel (Two -way Audio) DVR

The Hikvision DS-7108HGHI-M1/T is a compact 8-channel Turbo HD DVR designed for small to medium surveillance setups. It supports HD-TVI, AHD, CVI, CVBS, and IP cameras, making it a flexible and cost-effective choice for hybrid video recording systems. Hikvision DS-7108HGHI-M1/T Mini 1U DVR ideal for both traditional and IP-based setups. It features a maximum encoding capability of 1080p Lite at 25fps and dual HDMI/VGA outputs supporting up to 1080p at 60Hz for smooth and clear playback. With compatibility across HDTVI, AHD, HDCVI, and CVBS video formats, the Hikvision DS-7108HGHI-M1/T provides comprehensive video input flexibility.

Specifications:

Audio and Video

1. IP Camera Input:
2. 2 IP cameras (expandable up to 10 channels total)
3. Supports up to 1080p resolution
4. Compatible with H.265+/H.265/H.264+/H.264 IP cameras

Display

1. HDTVI Input: 1080p@25/30fps, 720p@25/30fps
2. AHD Input: 1080p@25/30fps, 720p@25/30fps
3. HDCVI Input: 1080p@25/30fps, 720p@25/30fps
4. CVBS Input: Supported
5. HDMI Output:
6. 1 channel
7. 1920×1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz
8. VGA Output:
9. 1 channel
10. 1920×1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz

Recording

1. Compression Formats:
2. H.265 Pro+, H.265 Pro, H.265, H.264+, H.264
3. Recording Resolution:
4. For 1080p access: 1080p Lite, 720p Lite, WD1, 4CIF, VGA, CIF
5. For 720p access: 720p, WD1, 4CIF, VGA, CIF
6. For SD access: WD1, 4CIF, VGA, CIF
7. Record Rate:
8. Main Stream:
9. 1080p/720p/SD at 15fps
10. Sub-Stream:
11. 4CIF at 15fps
12. CIF/QVGA at 25fps (PAL) / 30fps (NTSC)
13. Bit Rate: 32 Kbps – 4 Mbps
14. Stream Type: Video or Video & Audio
15. Audio Compression: G.711u
16. Audio Bitrate: 64 Kbps

Video Detection & Alarm

1. Alarm Input: Not Available

Playback and Backup

1. Synchronous Playback: 8 channels
2. Search Mode:
3. Quick search by object or event type supported

Network

1. Ethernet:
2. 1 × RJ45, 10/100 Mbps self-adaptive Ethernet interface
3. Supported Protocols:
4. TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP, HTTPS

Storage

1. Internal HDD:
2. 1 SATA Interface
3. Supports up to 4TB

Auxiliary Interfaces

1. USB Ports:
2. 2 × USB 2.0

Power & Environment

1. Power Supply: 12V DC, 1.5A
2. Power Consumption: ≤ 10W (without HDD)
3. Operating Temperature: -10°C to +55°C (14°F to 131°F)

Construction

1. Dimensions: 200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch)
2. Net Weight: ≤ 1 kg (without HDD)

Warranty

1. Manufacturer Warranty: 1 Year
