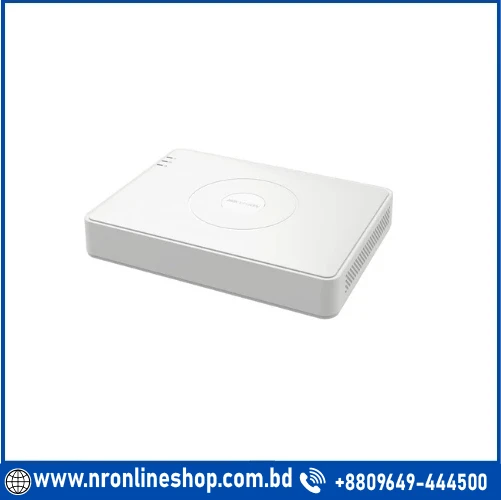

Hikvision DS-7116HGHI-M1/T 16 Channel Lite Mini 1U DVR

1. Deep learning based human and vehicle targets classification of Motion Detection 2.0
2. H.265 Pro+/H.265 Pro/H.265 video compression
3. HDTVI/AHD/CVI/CVBS/IP video input
4. Audio via coaxial cable
5. Up to 18-ch IP camera input (up to 5 MP)
6. Encoding ability up to 1080p lite @ 15 fps
7. Support all channels HDTVI two-way audio technology

Specification:

1. Motion Detection 2.0
2. Human/Vehicle Analysis
3. Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
4. Quick search by object or event type is supported;
5. Video and Audio
6. IP Video Input
7. 2-ch (up to 18-ch)
8. Up to 5 MP resolution
9. Support H.265+/H.265/H.264+/H.264 IP cameras
10. Analog Video Input
11. 16-ch
12. BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
13. HDTVI Input1080p25, 1080p30, 720p25, 720p30
14. AHD Input1080p25, 1080p30, 720p25, 720p30
15. HDCVI Input1080p25, 1080p30, 720p25, 720p30
16. CVBS InputPAL/NTSC
17. HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
18. VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
19. Video Output ModeHDMI/VGA simultaneous output
20. Audio Input1-ch RCA (2.0 Vp-p, 1 KΩ), and 16-ch via coaxial cable
21. Audio Output1-ch, RCA (Linear, 1 KΩ)
22. Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
23. Synchronous Playback16-ch
24. Recording
25. Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
26. Encoding Resolution
27. For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
28. For 720p stream access: 720p/WD1/4CIF/VGA/CIF
29. For standard definition stream access: WD1/4CIF/VGA/CIF
30. Frame Rate
31. Main stream:
32. For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps
33. For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps
34. For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
35. Sub-stream:
36. For 1080p and 720p stream access CIF/QVGA@15 fps
37. For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
38. Video Bitrate32 Kbps to 4 Mbps
39. Dual-streamSupport
40. Stream TypeVideo, Video & Audio
41. Audio CompressionG.711u
42. Audio Bitrate64 Kbps
43. Network
44. Total Bandwidth96 Mbps
45. Remote Connection128
46. Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP™, HTTPS, ONVIF
47. Network Interface1, RJ45 10M/100M self-adaptive Ethernet interface
48. Auxiliary Interface
49. SATA1, SATA interface
50. CapacityUp to 6 TB capacity for each disk
51. USB Interface2 × USB 2.0
52. General
53. Power Supply12 VDC, 2 A
54. Consumption≤ 7 W (without HDD)
55. Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
56. Working Humidity10% to 90%
57. Dimension (W × D × H)285 × 210 × 48 mm (11.2 × 8.3 × 1.9 inch)
58. ≤ 1.8 kg (without HDD, 4.0 lb.)
