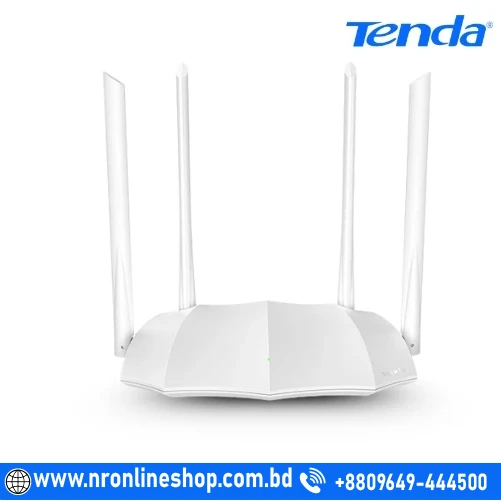

Tenda AC5 AC1200 Dual-Band WiFi Router Fast, Stable & Smart Connectivity

AC5 is an AC1200 dual band WiFi router, designed for medium-sized apartment with a 100Mbps fiber access. It provides WiFi speed up to 1167 Mbps (5GHz: 867Mbps and 2.4GHz: 300Mbps). Adopted the integrated dual-band technology, combining 2.4GHz and 5GHz signals under one WiFi name. The faster band would be allocated to your devices automatically by our dynamic optimization system. Meanwhile, featured with 4*6dBi high-gain antennas and equipped with a 28nm high performance CPU, it brings a better internet experience. AC5 supports IPv6 protocol, it can reduce the data transmission time and minimize the lag. Furthermore, the remote management function by the Tenda WiFi App provides the easiest way to manage AC5.

Specifications

🌐 Network Standard & Protocol

1. IEEE 802.3
2. IEEE 802.3u

🔌 Interfaces

1. 1 × 10/100 Mbps WAN Port
2. 3 × 10/100 Mbps LAN Port

📡 Antenna

1. 4 × 6dBi External Antenna

🔘 Buttons

1. 1 × WPS / Reset Button
2. 1 × WiFi On/Off Button

⚡ Power

1. AC Input: 100–240V ~ 50/60Hz, 0.2A
2. DC Output: 9V ⎓ 1A

📏 Dimensions

1. 171 × 171 × 210 mm (L × W × H)

💡 LED Indicators

1. SYS ×1
2. WiFi ×1
3. WAN ×1
4. LAN ×3

📶 Wireless Standards

1. IEEE 802.11ac/a/n (5GHz)
2. IEEE 802.11b/g/n (2.4GHz)

🚀 Wireless Speed (Data Rate)

1. 5GHz: Up to 867 Mbps
2. 2.4GHz: Up to 300 Mbps
3. Dual Band: Concurrent 2.4GHz & 5GHz

📡 Transmission Power

1. CE:<20 dBm (2.4GHz)
2. <23 dBm (5GHz)
3. FCC: <30 dBm

⚙️ Basic Features

1. SSID Broadcast Enable/Disable
2. Beamforming Technology
3. MU-MIMO Support

🔐 Wireless Security

1. WPA-PSK / WPA2-PSK
2. WPA/WPA2 Security
3. WPS Fast Encryption
4. Wireless Security Enable/Disable

🌍 Internet Connection Types

1. PPPoE
2. Dynamic IP
3. Static IP
4. PPTP (Russia)
5. L2TP (Russia)

🔄 Operating Modes

1. Wireless Router Mode
2. Universal Repeater Mode
3. WISP Mode
4. Access Point (AP) Mode

🖥 DHCP Features

1. DHCP Server
2. DHCP Client List
3. DHCP Reservation

🌐 Virtual Server

1. Port Forwarding
2. DMZ Host
3. UPnP

🛡 Security Features

1. Client Filter (Blacklist & Whitelist)
2. Parental Control
3. Remote Management

🔥 Firewall Protection

1. UDP Flood Attack Protection
2. TCP Flood Attack Protection
3. Flood Attack Protection
4. WAN Ping Blocking

🌐 DDNS Support

1. DDNS
2. No-IP
3. 3322.org
4. Oray.com
5. 88ip

🔒 VPN Support

1. PPTP
2. L2TP
3. PPTP Client
4. L2TP Client

⭐ Special Features

1. PPPoE Username/Password Clone
2. Smart WiFi Schedule
3. Smart Sleeping Mode
4. Smart LED On/Off
5. Tenda WiFi App Support

🧩 Additional Features

1. IPv6 Supported
2. Bandwidth Control
3. Guest Network
4. IPTV Support
5. MAC Address Clone
6. System Log
7. Backup & Restore Configuration
8. Online & Local Firmware Upgrade
