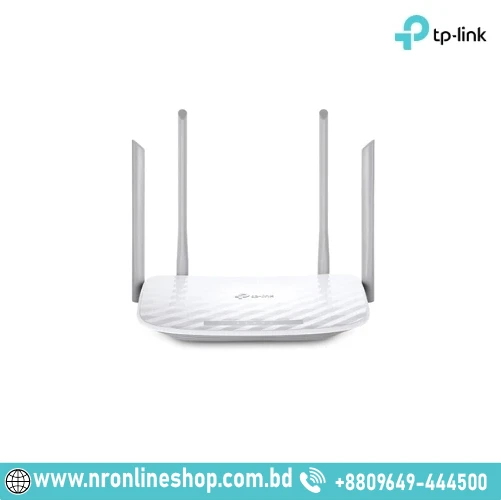

TP-Link Archer C50 AC1200 Dual Band Wi-Fi Router 1200 sq ft to 1500 sq ft Area

The TP-Link Archer C50 AC1200 Dual Band Router is a smart choice if you're looking for fast, stable, and hassle-free internet at home or in the office. It supports the 802.11ac Wi-Fi standard, which means it's built to handle modern internet demands—whether you're watching movies in HD, playing online games, or using multiple devices at once.

1. Support smooth 4K streaming with AC1200 Wi-Fi
2. 4 external antennas provide stable wireless connections and optimal coverage
3. Works with EasyMesh routers and range extenders to form seamless whole home Mesh WiFi, preventing drops and lag when moving between signals
4. Remote router control via the cloud
5. WPA3 reinforces Wi-Fi encryption for improved security
6. Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming
7. Supports Access Point mode to create a new Wi-Fi access point

Specification

WIRELESS

Standards & Protocols

1. Wi-Fi 5 (802.11ac/n/a) – 5 GHz
2. 802.11n/b/g – 2.4 GHz

Wi-Fi Speeds

1. AC1200
2. 5 GHz: Up to 867 Mbps (802.11ac)
3. 2.4 GHz: Up to 300 Mbps (802.11n)

Wi-Fi Range

1. Suitable for 3-Bedroom Houses
2. 4× Fixed Antennas
3. Beamforming: Concentrates signal toward connected devices for stronger coverage

Wi-Fi Capacity & Features

1. Dual-Band: Optimizes device allocation across 2.4 GHz and 5 GHz
2. 2×2 MU-MIMO: Communicates simultaneously with multiple clients

Working Modes

1. Router Mode
2. Access Point Mode
3. Range Extender Mode

SECURITY

Network Security

1. SPI Firewall
2. Access Control
3. IP & MAC Binding
4. Application Layer Gateway
5. IoT Security

Guest Networks

1. 1× 5 GHz Guest Network
2. 1× 2.4 GHz Guest Network

Wi-Fi Encryption

1. WPA / WPA2 / WPA3
2. WPA/WPA2-Enterprise (802.1x)

HARDWARE

Ethernet Ports

1. 1× 10/100 Mbps WAN Port
2. 4× 10/100 Mbps LAN Ports

Buttons

1. WPS / Wi-Fi Button
2. Power On/Off Button
3. Reset Button

Power

1. 9 V ⎓ 0.85 A

SOFTWARE FEATURES

Protocols

1. IPv4 / IPv6

EasyMesh

1. Mesh networking enables smooth, stable roaming
2. Works with other EasyMesh/OneMesh devices
3. Eliminates Wi-Fi dead zones and expands coverage across your home

Parental Controls

1. URL Filtering
2. Time Controls

WAN Types

1. Dynamic IP / Static IP / PPPoE / PPTP / L2TP

Quality of Service

1. QoS by Device

Cloud Service

1. OTA Firmware Upgrade
2. TP-Link ID

NAT Forwarding

1. Port Forwarding / Port Triggering / DMZ / UPnP

IPTV

1. IGMP Proxy / IGMP Snooping

Bridge & VLAN

1. Bridge Mode / Tag VLAN

DHCP

1. DHCP Server / DHCP Client List / Address Reservation

DDNS

1. TP-Link / NO-IP / DynDNS

Management

1. Tether App / Web Interface

ENVIRONMENT & CERTIFICATIONS

1. Operating Temperature: 0℃–40℃ (32℉–104℉)
2. Storage Temperature: −40℃–70℃ (−40℉–158℉)
3. Operating Humidity: 10%–90% non-condensing
4. Storage Humidity: 5%–90% non-condensing
5. Certifications: FCC, CE, RoHS

TEST DATA

Wi-Fi Transmission Power

1. CE EIRP: <20 dBm (2.4 GHz), <23 dBm (5 GHz)
2. FCC: <30 dBm (2.4 GHz & 5 GHz)

Wi-Fi Reception Sensitivity

1. 5 GHz:11a 54M: −73 dBm
2. 11ac VHT20 MCS8: −68 dBm
3. 11ac VHT40 MCS9: −64 dBm
4. 11ac VHT80 MCS9: −60 dBm
5. 2.4 GHz:11g 54M: −76 dBm
6. 11n HT20 MCS7: −74 dBm
7. 11n HT40 MCS7: −71 dBm

PHYSICAL

1. Dimensions (W×D×H): 9.1 × 5.7 × 1.5 in (229.9 × 144.2 × 36.9 mm)

Package Contents

1. Wi-Fi Router Archer C50
2. Power Adapter
3. RJ45 Ethernet Cable
4. Quick Installation Guide
