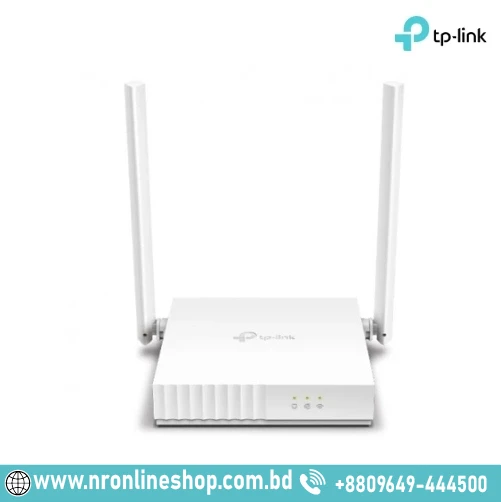

TP-Link TL-WR820N 300Mbps WiFi Router for Home & Office

The TP-Link TL-WR820N 300Mbps WiFi Router is a compact and efficient networking solution designed for home and small office use. Offering wireless speeds of up to 300Mbps, it is ideal for everyday tasks such as web browsing, HD streaming, online gaming, and video calling. Equipped with two high-gain external antennas, the TL-WR820N ensures stable wireless connections and extended coverage, allowing users to stay connected throughout their home or workspace.

This router supports IGMP Proxy/Snooping, Bridge, and Tag VLAN, optimizing IPTV streaming for an enhanced entertainment experience. With its intuitive web interface and the TP-Link Tether app, setup and network management are straightforward, even for non-tech-savvy users. It also includes robust security features such as WPA/WPA2 encryption to safeguard your network and parental controls to manage access for children and guests.

The TL-WR820N features two 10/100Mbps LAN ports and one 10/100Mbps WAN port for flexible wired connections. Its sleek, modern design fits neatly into any environment without taking up much space. Whether you're upgrading your home network or setting up a new connection, the TP-Link TL-WR820N provides reliable performance, ease of use, and excellent value for money.

1. 300 Mbps Wi-Fi speed is ideal for daily tasks including browsing, emailing, and video streaming
2. IPTV supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming
3. Guest Network provides separate access for guests while securing the host network
4. Parental Controls manage when and how connected devices can access the internet
5. SPI firewall and wireless encryption protect your home network
6. Compatible with IPv6 (Internet Protocol version 6)

Specification:

WIRELESS

Standards & Protocols

1. Wi-Fi 4 (802.11n) / Legacy (802.11b/g)
2. 2.4 GHz: IEEE 802.11n/b/g

Wi-Fi Speeds

1. N300
2. 2.4 GHz: Up to 300 Mbps (802.11n)

Wi-Fi Range

1. Suitable for 2-Bedroom Houses
2. 2× Fixed Antennas

Wi-Fi Capacity

1. Legacy devices supported

Working Modes

1. Router Mode
2. Access Point Mode
3. Range Extender Mode
4. WISP Mode

SECURITY

Network Security

1. SPI Firewall
2. Access Control
3. IP & MAC Binding
4. Application Layer Gateway (ALG)

Guest Network

1. 1× 2.4 GHz Guest Network

Wi-Fi Encryption

1. WEP / WPA / WPA2 / WPA/WPA2-Enterprise (802.1x)

HARDWARE

Processor

1. Single-Core CPU

Ethernet Ports

1. 1× 10/100 Mbps WAN Port
2. 2× 10/100 Mbps LAN Ports

Buttons

1. Reset Button

Power

1. 5 V ⎓ 0.6 A

SOFTWARE FEATURES

Protocols

1. IPv4 / IPv6

Parental Controls

1. URL Filtering
2. Time Controls

WAN Types

1. Dynamic IP / Static IP / PPPoE / PPTP / L2TP

Quality of Service

1. QoS by Device

NAT Forwarding

1. Port Forwarding / Port Triggering / DMZ / UPnP

IPTV

1. IGMP Proxy / IGMP Snooping

Bridge & VLAN

1. Bridge Mode / Tagged VLAN

DHCP

1. Address Reservation / DHCP Client List / DHCP Server

DDNS

1. NO-IP / DynDNS

Management Features

1. Tether App
2. Web Interface

OTHER INFORMATION

System Requirements

1. Internet Explorer 11+, Firefox 12+, Chrome 20+, Safari 4+, or any JavaScript-enabled browser
2. Cable or DSL Modem (if needed)
3. Active ISP subscription

Certifications

1. FCC / CE / RoHS

Operating Environment

1. Operating Temperature: 0℃–40℃ (32℉–104℉)
2. Storage Temperature: −40℃–70℃ (−40℉–158℉)
3. Operating Humidity: 10%–90% (non-condensing)

Storage Humidity: 5%–90% (non-condensing)
