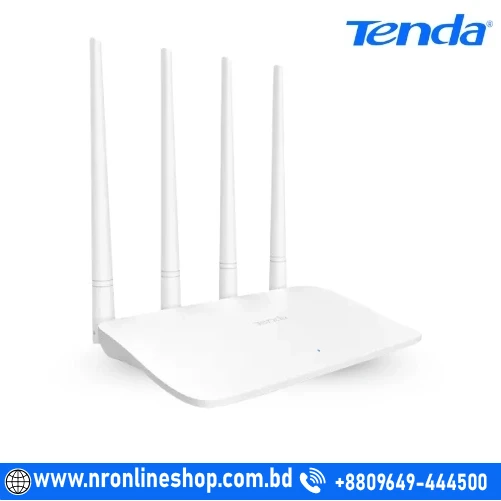

Tenda F6 300Mbps WiFi Router Energy-saving and Environmental-friendly

F6 is specially designed for regular urban flat. With 4 external 5dbi antennas, the wireless coverage can perfectly cover any regular flat or student accommodation; F6 can also be used as wifi signal extender, just one step to bridging two routers brings your twice wifi coverage. The built-in Qualcomm chip is compatible with any mainstream mobile phone signal module, and maintain your connection stable. In addition, it comes with Wifi timer switch function, you can enjoy your wifi but without worrying about spending too much time on it.

Specification

STANDARDS & PROTOCOLS

1. IEEE 802.3 / IEEE 802.3u / IEEE 802.3ab
2. Wireless: IEEE 802.11b/g/n (2.4 GHz)

INTERFACES

1. 1× 10/100 Mbps WAN Port
2. 3× 10/100 Mbps LAN Ports

ANTENNA

1. 4× 5 dBi External Antennas

BUTTONS

1. 1× Reset Button

POWER

1. Input: AC 100–240V ~ 50/60Hz 0.6A
2. Output: DC 9V ⎓ 0.6A

DIMENSIONS

1. 204 × 147.5 × 211 mm

LED INDICATOR

1. 1× SYS

WIRELESS FEATURES

Frequency

1. 2.4 GHz

Data Rate

1. Up to 300 Mbps (2.4 GHz)

Transmission Power (Max EIRP)

1. 2.4–2.4835 GHz: 19.5 dBm (CE)

Basic Features

1. Wi-Fi On/Off

Wireless Security

1. WPA / WPA2 / WPA-PSK / WPA2-PSK

INTERNET CONNECTION TYPES

1. PPPoE / Dynamic IP / Static IP
2. PPPoE (Russia) / PPTP (Russia) / L2TP (Russia)

OPERATING MODES

1. Wireless Router Mode
2. Universal Repeater Mode
3. WISP Mode
4. Access Point (AP) Mode

DHCP FEATURES

1. DHCP Server
2. DHCP Client List
3. DHCP Reservation

VIRTUAL SERVER

1. Port Forwarding
2. DMZ Host
3. UPnP

SECURITY & FIREWALL

1. Client Filter (Blacklist / Whitelist)
2. Parental Controls
3. Remote Web Management
4. Firewall Protection:
5. Forbid UDP Flood Attack
6. Forbid TCP Flood Attack
7. Forbid ICMP Attack
8. Forbid WAN Ping from Internet

DDNS SUPPORT

1. NO-IP / DynDNS / Oray

VPN PASS-THROUGH

1. IPsec / PPTP / L2TP

SPECIAL FEATURES

1. PPPoE Username/Password Clone
2. Smart Wi-Fi Schedule
3. Bandwidth Control
4. MAC Clone
5. System Log
6. Backup & Restore Configurations
7. Firmware Upgradeable via Browser
8. IPv6 Support (Bangladesh only)

ENVIRONMENT

1. Operating Temperature: 0℃–40℃
2. Storage Temperature: −40℃–70℃
3. Operating Humidity: 10%–90% RH (non-condensing)
4. Storage Humidity: 5%–90% RH (non-condensing)

DEFAULT SETTINGS

1. Default Access: 192.168.0.1

CERTIFICATIONS

1. CE / FCC / RoHS

PACKAGE CONTENTS

1. 1× Wireless Router
2. 1× Power Adapter
3. 1× Ethernet Cable
4. 1× Installation Guide
