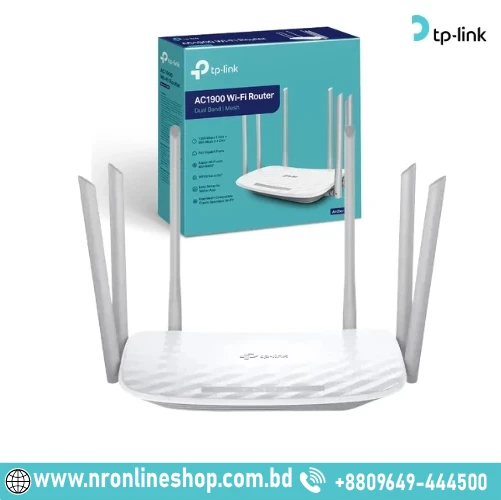

TP-Link Archer C86 AC1900 Wireless MU-MIMO Dual-Band Wi-Fi Router

TP-Link Archer C86 AC1900 Wireless MU-MIMO Dual-Band Wi-Fi Router.  The TP-Link Archer C86 AC1900 Dual-Band Wi-Fi Router is a powerful and reliable networking solution built for high-speed internet demands at home or in the office. With combined wireless speeds of 600Mbps on 2.4GHz and 1300Mbps on 5GHz, it ensures smooth 4K streaming, online gaming, and fast downloads without buffering. Equipped with Beamforming technology and 3 high-performance external antennas, the Archer C86 delivers strong and focused Wi-Fi coverage throughout your space. Its MU-MIMO technology allows multiple devices to connect simultaneously with minimal lag, enhancing overall network efficiency and performance. The Tp-Link Archer C86 AC1900 Wireless Wi-Fi Router comes with 1 year warranty.

1. 802.11ac Wave2 Wi-Fi – 1300 Mbps on the 5 GHz band and 600 Mbps on the 2.4 GHz band.
2. 3×3 MIMO Technology – Transmitting and receiving data on three streams to pair flawlessly with your 3×3 clients.
3. Boosted Wi-Fi Coverage – Beamforming technology and six external antennas deliver a highly efficient wireless connection.
4. MU-MIMO – To help your devices achieve optimal performance by making communication more efficient.
5. Personalized Management – Advanced features like Parental Controls, Guest Network, and Access Control provide individualized tools for network management.
6. Intelligent Connection – Smart Connect directs clients to the less congested band and Airtime Fairness optimizes the time usage.

Archer C86 AC1900 Wireless Wi-Fi Router Specification

WIRELESS

Standards & Protocols

1. Wi-Fi 5 (802.11ac/n/a) – 5 GHz
2. 802.11n/b/g – 2.4 GHz

Wi-Fi Speeds

1. AC1900
2. 5 GHz: Up to 1300 Mbps (802.11ac)
3. 2.4 GHz: Up to 600 Mbps (802.11n)

Wi-Fi Range

1. Suitable for 3-Bedroom Houses
2. 6× Fixed High-Performance Antennas
3. Beamforming: Focuses wireless signal toward connected devices for better coverage

Wi-Fi Capacity & Features

1. Dual-Band: Optimal performance by splitting devices across 2.4 GHz and 5 GHz
2. 3×3 MU-MIMO: Simultaneously communicates with multiple clients
3. Airtime Fairness: Reduces bandwidth hogging by individual devices

Working Modes

1. Router Mode
2. Access Point Mode

SECURITY

Network Security

1. SPI Firewall
2. Access Control
3. IP & MAC Binding
4. Application Layer Gateway

Guest Networks

1. 1× 5 GHz Guest Network
2. 1× 2.4 GHz Guest Network

Wi-Fi Encryption

1. WPA / WPA2 / WPA3
2. WPA/WPA2-Enterprise (802.1x)

HARDWARE

Ethernet Ports

1. 1× Gigabit WAN Port
2. 4× Gigabit LAN Ports

Buttons

1. WPS / Wi-Fi Button
2. Power On/Off Button
3. Reset Button

Power

1. US Version: 12 V ⎓ 1.5 A
2. EU Version: 12 V ⎓ 1 A

SOFTWARE FEATURES

Protocols

1. IPv4 / IPv6

EasyMesh

1. Mesh networking for smooth, fast, stable roaming
2. Works with other EasyMesh / OneMesh devices
3. Eliminates Wi-Fi dead zones, expands coverage

Parental Controls

1. URL Filtering
2. Time Controls

WAN Types

1. Dynamic IP / Static IP / PPPoE / PPTP / L2TP

Quality of Service

1. QoS by Device

Cloud Service

1. OTA Firmware Upgrade
2. TP-Link ID

NAT Forwarding

1. Port Forwarding / Port Triggering / DMZ / UPnP

IPTV

1. IGMP Proxy / IGMP Snooping

Bridge & VLAN

1. Bridge Mode / Tag VLAN

DHCP

1. Address Reservation / DHCP Client List / Server

DDNS

1. TP-Link / NO-IP / DynDNS

Management

1. Tether App / Web Interface

ENVIRONMENT & CERTIFICATIONS

1. Operating Temperature: 0℃–40℃ (32℉–104℉)
2. Storage Temperature: −40℃–70℃ (−40℉–158℉)
3. Operating Humidity: 10%–90% non-condensing
4. Storage Humidity: 5%–90% non-condensing
5. Certifications: FCC, CE, RoHS

TEST DATA

Wi-Fi Transmission Power

1. CE: <20 dBm (2.4 GHz), <23 dBm (5.15–5.25 GHz)
2. FCC: <30 dBm (2.4 GHz & 5 GHz)

Wi-Fi Reception Sensitivity

5 GHz:

1. 11a 6 Mbps: −98 dBm
2. 11a 54 Mbps: −78 dBm
3. 11ac VHT20_MCS0: −98 dBm
4. 11ac VHT20_MCS8: −72 dBm
5. 11ac VHT40_MCS0: −92 dBm
6. 11ac VHT40_MCS9: −68 dBm
7. 11ac VHT80_MCS0: −89 dBm
8. 11ac VHT80_MCS9: −64 dBm

2.4 GHz:

1. 11g 6 Mbps: −97 dBm
2. 11g 54 Mbps: −77 dBm
3. 11n VHT20_MCS0: −97 dBm
4. 11n VHT20_MCS8: −72 dBm
5. 11n VHT40_MCS0: −92 dBm
6. 11n VHT40_MCS9: −67 dBm

PHYSICAL

1. Dimensions (W×D×H): 9.1 × 5.1 × 1.5 in (229.9 × 144.2 × 37.2 mm)

Package Contents

1. Wi-Fi Router Archer C86
2. Power Adapter
3. RJ45 Ethernet Cable
4. Quick Installation Guide
